Best Price WPV160 Vertical Pillow Bag Filling Snack Candy Nuts Packing Machine Nitrogen

  • Best Price WPV160 Vertical Pillow Bag Filling Snack Candy Nuts Packing Machine Nitrogen
  • Best Price WPV160 Vertical Pillow Bag Filling Snack Candy Nuts Packing Machine Nitrogen
  • Best Price WPV160 Vertical Pillow Bag Filling Snack Candy Nuts Packing Machine Nitrogen
  • Best Price WPV160 Vertical Pillow Bag Filling Snack Candy Nuts Packing Machine Nitrogen

Best Price WPV160 Vertical Pillow Bag Filling Snack Candy Nuts Packing Machine Nitrogen

    Verpakung: Seaworthy Plywood Case
    Versorgungsmaterial-Fähigkeit: 100 Set/Sets per Month
    Hafen: Shanghai

Produktbeschreibung

Products Description
WPV160 Vertical Form Fill Seal Packing Machine
Model
WPV160
Suitable Bag Type
Pillow Bag , Gusseted Bag
Bag Sizes
(W)50-160mm
(L) 55-200mm
Film Width
Max350mm
Packing Speed
15-80bags/min
Packing Material
Laminated Film
Powder Supply
AC220V , 50-60Hz , 3.5KW
Compressed Air Cost
6-8kg/m², 0.45m³/min
Application
Granular materials, such as small candy, snacks, mini biscuit, baby food, nuts, dried fruit, seed..
Powder materials, such as milk powder,milk tea powder, spice powder,coffee powder, health powder etc.
Weight
450KG
Dimension
(L)1350 * (W)940 * (H)1100

Main Features

1.Equipped with safety protection system, company with hygiene requirements.
2.Use intelligent temperature controller to ensure the artistic and neat seal.
3.With technical parameters storage function, no need to reset while products and packages changing.
4.Equipped with a fault display system to help timely troubleshooting.
5.Form into pillow bag, stick bag, according to customer requirements.
6.Use PLC servo system, pneumatic control system and touch screen as a core control unit, maximize the whole machine's control precision, reliability and intelligentized level.
7.Combine with weigher system, conveyor feeding and discharging, date printing equipment to be a complete packaging line.
8. According to the requirements of customers, different materials are equipped with different measuring equipment.Such as granular material will be provide to a multi-head weigher; powder material will be provide to a auger filler.
Application
Details Images
WPV160 VFFS Packing Machine
1. Precision bag former & touch screen, digital screen display with numerical setting and flexible operation;
2. Imported PLC control system and color touching screen, easy operation;
3. Independent control of temperature, more suitable for different packaging material.

Feeding Hopper

· Material 304 SUS of food grade for option.
· According to the requirement of customer customized.

Bag Forming

· Automaticlly make roll film into bag.
· Material 304 SUS of food grade for option.
· According to your bag sizes requirements to replace the suitable bag former.

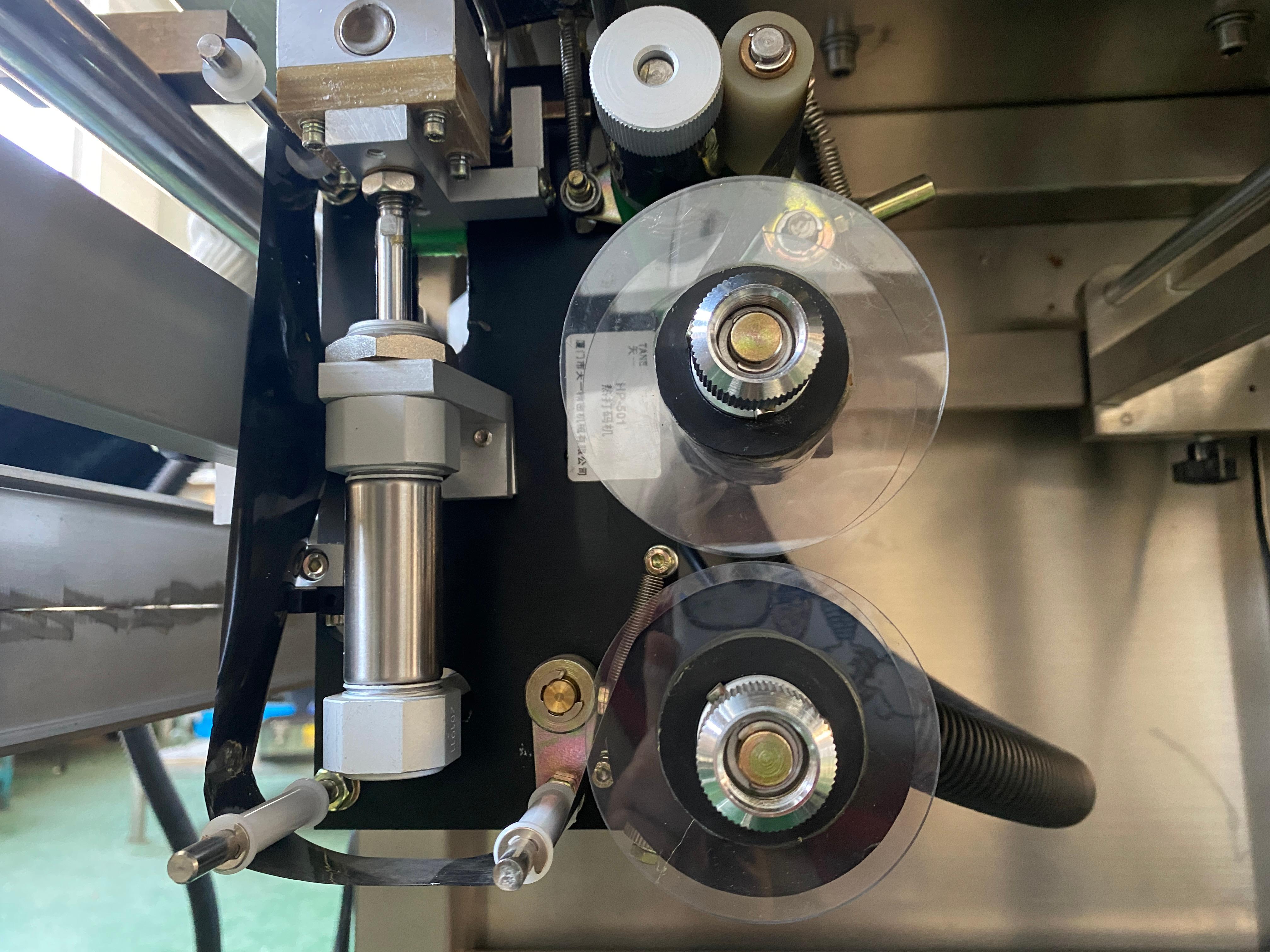

Date Code Printer

· Used to print production date,expiry date.
· Able to print the date according to customer requirements.

Sealing & Cutting

· Perfect sealing and accurate cutting · With option function.Such as round hole, euro hole.

Vertical Sealing

· Independent temperature control, sealing beautiful and perfect.

Film Pulling Belt

· Better adsorption to keep the bag graceful..

Touch Screen

Eletrical Part

Common Related Equipment
Elevator & Multi-head Weigher & Platform & Metal Detector
& WPV160 Vertical Packing Machine & Discharge Conveyor

WPV160 Vertical Packing Machine & Volumetric Cup Scale

Auger Lifter

Auger Filler

Packing & Delivery
Company Profile
About Us
1.A manufacturer of automatic packaging machinery and packaging production line, also automatic conveying systems.
2.With a well-educated excellent technician team has more than 16+ years of experience.
3.With our own factory located in Shanghai, can provide OEM, ODM to our quality customers.
4.Workers have rich experience in comissioning and assembly at domestic and abroad.
5.Provide pre-sale and after-sale services for customers all over the world.
6.Our sales markets in Europe, Southeast Asia, Middle East and others more than 50+ countries.
7.Mainly focus on producing automatic packaging and conveyor system for different kinds of granule strip flaky materials.
8.Applications for nuts, chocolates, candies, biscuits, potato chips, dry fruits, seeds, puffed food, quick frozen products, pet food, baby snacks, medicine etc.
-and powder products, such as flour, milk, rice, coffee powder, spices, seasonings, detergent powder, sugar, salt etc.
9.Provide customized roll film, premade pouch and cans packaging solutions and all life support. 10.Weeshine's packaging solutions will bring you extraordinary experience, to reach win-win cooperation.
FAQ
1.How do I know the packing machine model is suitable for my product?
Weeshine: Please advise all the below details of your product and we will check for you.

(1.)Product details
(2.).Bag shape
(3.) Bag size for each weight bag: Film width, bag width & bag length
(4.) Filling weight per bag
(5.)Packing film material
(6.) Production capacity per hour.
(7.) Other requirements

2. How about the delivery time?
Weeshine: All our machines are tailor-made as different customers have different requirements, delivery will be within 15 working days for the small packing machines. It takes longer time for the large-scale machine.

3. Can you offer some video or pictures of the packing machine?
Weeshine: Yes, of course. We also could help you to test your product on our packing machine and record a video for your reference if you could send some samples to us.

4. Are you factory or trading company?
Weeshine: We are the factory, and especially R&D, manufacture and sell various packing machines. We have engaged in the packing R&D and production over 16+years.

5. How can we make sure about the machine quality after we make the payment?
Weeshine: We will send you the pictures and videos for you to check the quality, you are welcome to check the quality by yourself before shipping as well.
